RPS6U 200-582-200-013

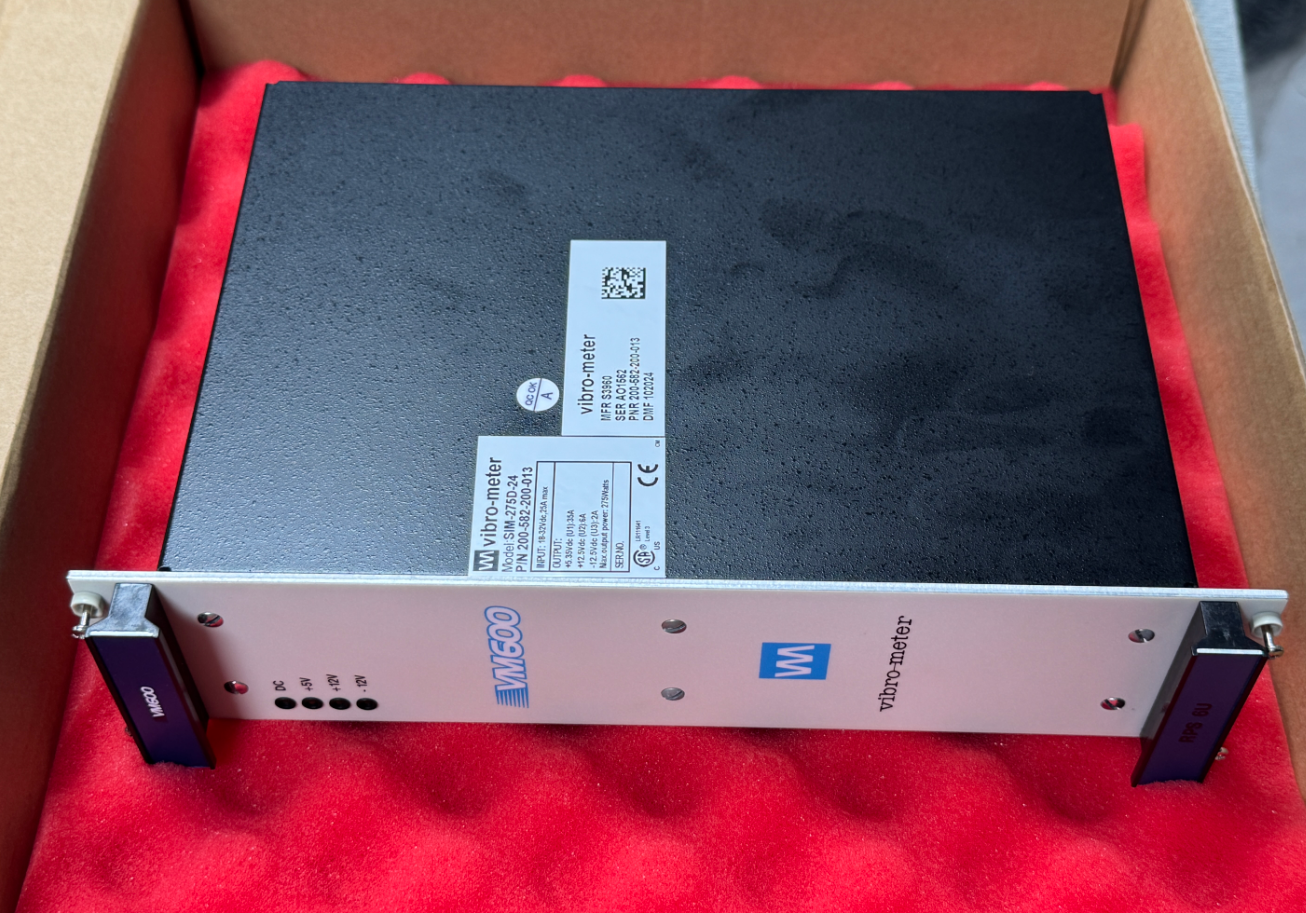

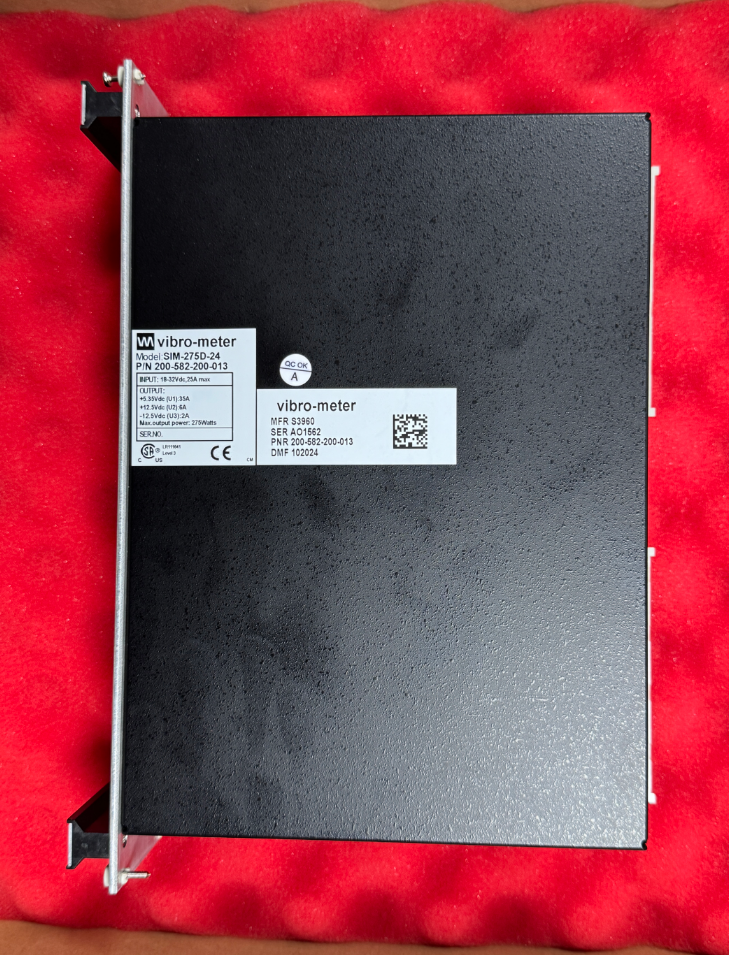

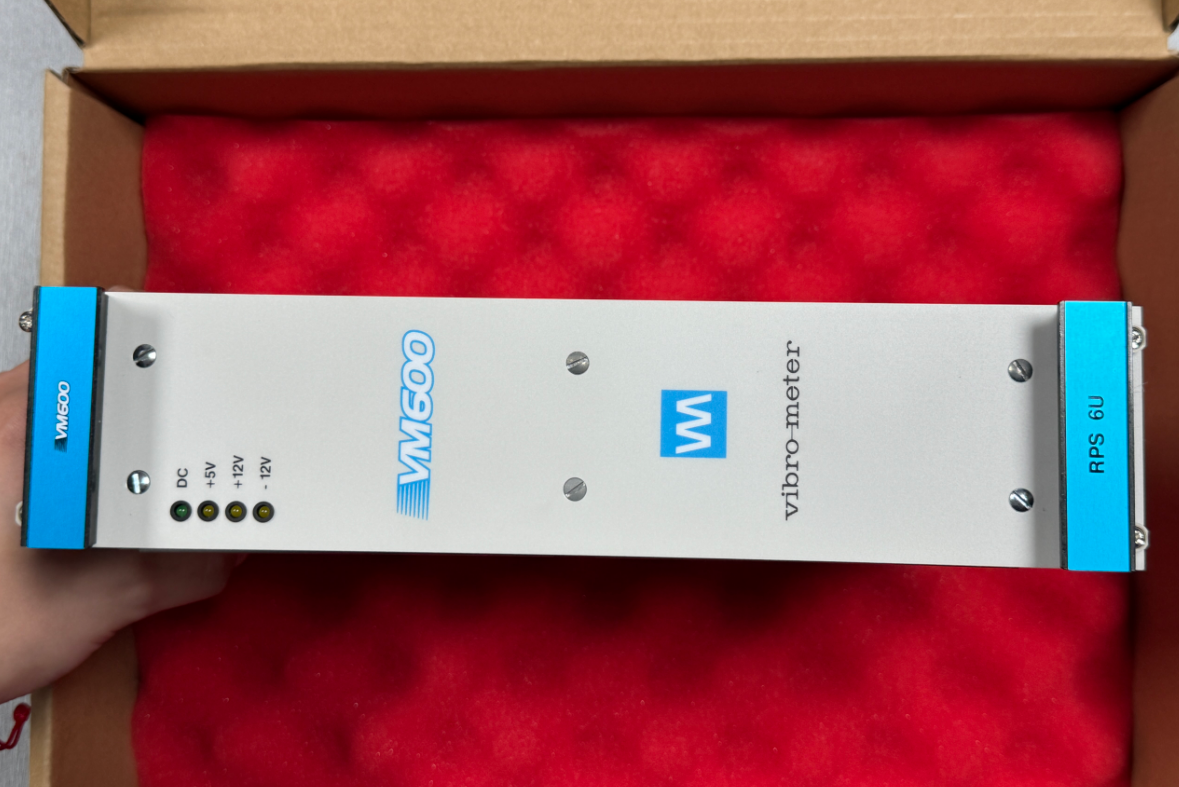

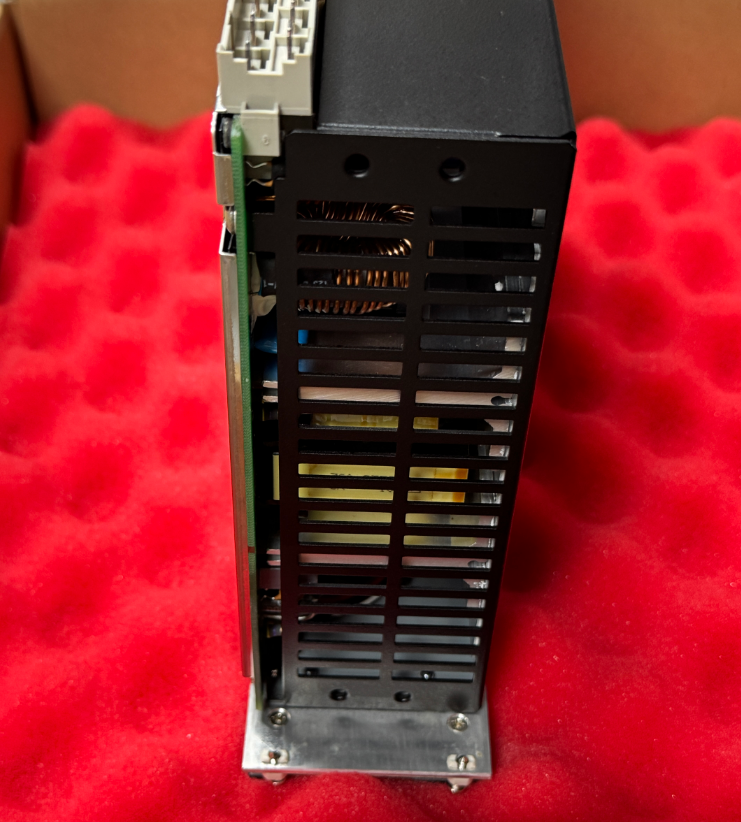

The RPS6U 200-582-200-013 is a rack-mounted power supply module designed specifically for mechanical protection systems and condition and performance monitoring systems. This power supply serves as a critical power supply unit within a complete monitoring system.

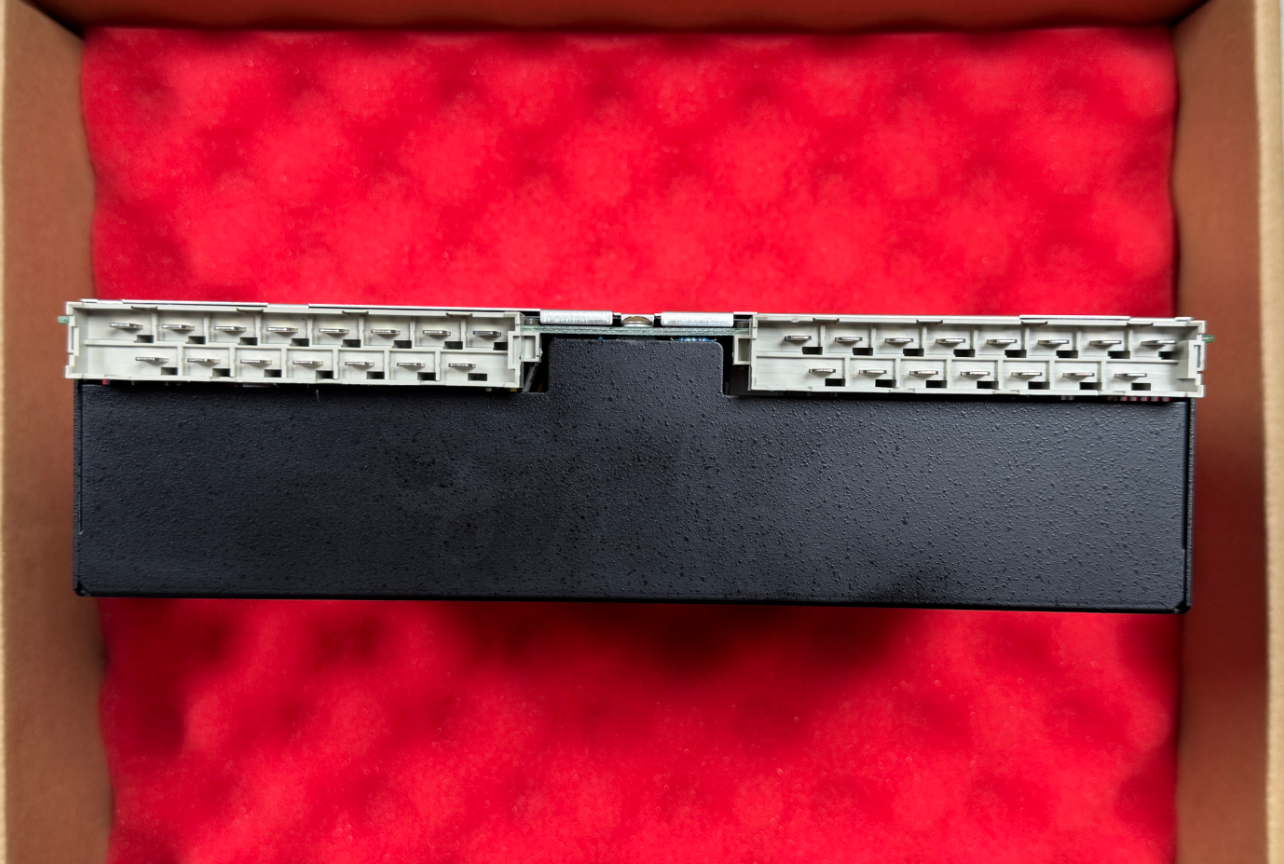

This model belongs to the 24 DC input series. It is compatible with standard 19-inch 6U ABE04x racks, mounts at the front of the rack, and connects to the rack backplane's VME bus via dual high-current DIN41612 H15 connectors on the rear, providing a unified power supply to all monitoring cards within the rack.

• Rated Input Voltage: 24 V DC
• Input Voltage Range: 18 to 32 V DC
• Input Current: Max. 30 A
• Efficiency: Typical 83%
• Inrush Current: < 10 times the rated input current
• Rated Output Voltage: +5 VDC (max. 50 A), +12 VDC (max. 8 A), -12 VDC (max. 4 A)
• Maximum Output Power: 330 W

Applicable for: ambient temperatures ≤50°C; standard card counts; non-core auxiliary units; ensures stable operation of a fully equipped rack at the lowest cost.

Applicable to: TSI systems for critical units such as steam turbines, gas turbines, and large compressors; if either power supply fails, the other unit independently carries the entire load, ensuring uninterrupted monitoring and meeting mandatory safety protection requirements for the unit.

Applicable to: Machine rooms with temperatures >50°C and fully equipped with high-density cards (10 or more processing and relay cards); the dual power supplies share the load, offsetting power derating caused by high temperatures and ensuring sufficient output power at full load.

Due to the high ambient temperature (nearly 50°C) on a certain offshore oil platform and the extremely high requirements for system availability, two RPS6U 200-582-200-013 power modules were selected to operate in a non-redundant configuration, jointly supplying power to a fully equipped rack to ensure sufficient power headroom even in high-temperature environments. The system has been operating stably for over two years without any power-related failures.
