GSI127 244-127-000-017 A2-B02

  • GSI127 244-127-000-017 A2-B02
  • GSI127 244-127-000-017 A2-B02
  • GSI127 244-127-000-017 A2-B02
  • GSI127 244-127-000-017 A2-B02
  • GSI127 244-127-000-017 A2-B02
Lugar de origen Porcelana
Nombre de la marca Other
Certificación Certificate of Origin
Número de modelo GSI127 244-127-000-017 A2-B02
Cantidad de orden mínima 1 unidad
Precio $2000
Detalles de empaquetado Embalaje en caja original
Tiempo de entrega 3-5 días
Condiciones de pago T/T
Capacidad de la fuente 1-99 unidades/3-5 días
Datos del producto
Número de módulo GSI127 244-127-000-017 Las autoridades nacionales de los Estados miembros de la Unión Europea y de l Número de pedido A2-B02
Condición En stock Peso 1KG
Plazo de entrega 3-5 días laborables Marca Otro
Origen Porcelana Precio de venta $ 2000
Garantía 1 año
Resaltar

MEGT VBM A2-B02 component

,

GSI127 industrial part

,

244-127-000-017 replacement module
Deja un mensaje
Descripción de producto
GSI127 244-127-000-017 A2-B02 Galvanic Separation Unit
Key Features
  • High-level electrical isolation: Provides 4 kV RMS isolation between sensor and monitoring sides, and 50 V RMS isolation between power supply and output signal
  • Intrinsic safety certification: Holds ATEX and IECEx certifications; suitable for Zone 2 environments and capable of powering Zone 0 sensors
  • High interference immunity: Effectively suppresses rack voltage to ensure measurement signal accuracy
  • Flexible installation: Features standard DIN-rail mounting and pluggable screw terminals
  • Wide-bandwidth response: Supports signal transmission from DC to 20 kHz (±0.5 dB)

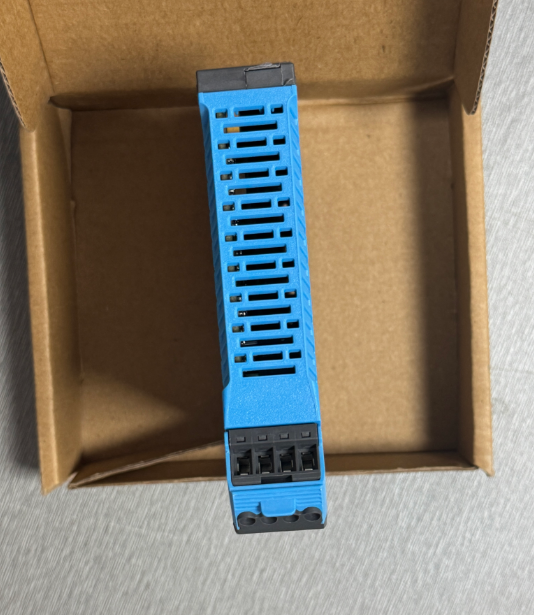

  • Status indication: Ex-certified versions feature blue terminals for easy identification
Product Description

The GSI127 244-127-000-017-A2-B02 is a high-performance galvanic separation unit designed to connect signal conditioners, charge amplifiers, and sensors within various measurement chains. It provides up to 4 kV RMS electrical isolation between the sensor side and monitoring side, effectively blocking ground loops and filtering out rack voltage interference of up to 50 V RMS, thereby ensuring signal integrity and stability.

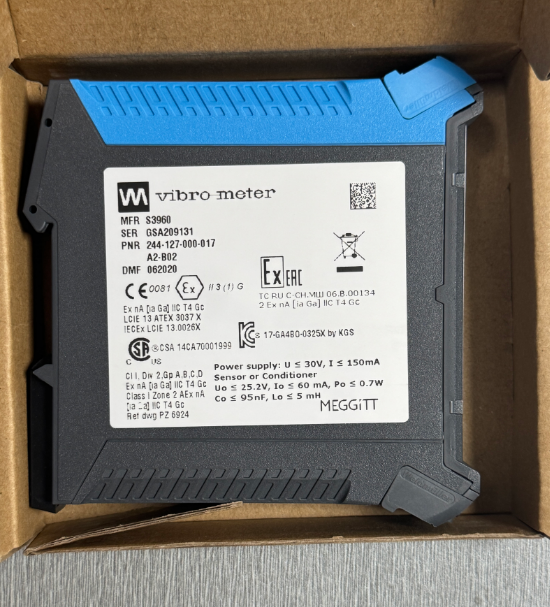

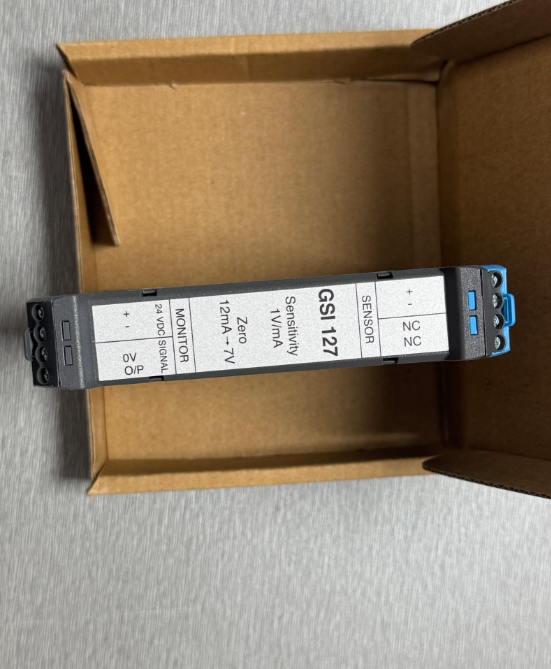

GSI127 Galvanic Separation Unit product image
Product Specifications
Brand Name Other
Model GSI127 244-127-000-017
Ordering Information A2-B02
Catalog Galvanic Separation Units
Gross Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16 cm x 12 cm
Country of Origin China
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $2000
Warranty 12 months
Courier Partners DHL, UPS, TNT, FedEx and EMS
Ordering Information
GSI127 ordering information diagram
Product Advantages
Advantage Description
High isolation voltage 4 kVRMS sensor-to-monitor isolation + 50 VRMS power-to-output isolation
Common-mode rejection Effectively eliminates ground loop noise and AC noise pickup
Explosion-proof certification Suitable for Zone 2 installation; capable of powering Zone 0 devices
SIL 2 capability Suitable for functional safety applications (IEC 61508)
Built-in diagnostics Automatic remote indication of measurement chain health
Flexible configuration Multiple sensitivity/zero-point options to suit various sensors
Easy installation DIN-rail mounting + pluggable terminals
Wide operating temperature -40°C to +85°C
High compatibility Supports the full Vibro-Meter range and IEPE standard sensors
No external power supply required Floating output design; eliminates the need for APF19x
Case Study
In the compressor monitoring system of an offshore natural gas platform, vibration sensors are mounted directly onto the compressor unit—an area subject to stringent explosion-proof requirements (Zone 0). The GSI127 A2-B02 unit is installed within a relatively safe control cabinet (Zone 2). It serves a dual purpose: providing intrinsically safe power to the IPC707 unit in the Zone 0 area and receiving the 4-20 mA vibration signal output by the IPC707. It converts this signal into a 7-19 V voltage signal and transmits it—via electrical isolation and without interference—to the downstream monitoring system and PLC, thereby ensuring both the safety of the monitoring loop and signal integrity within the hazardous environment.
Frequently Asked Questions
What distinguishes the GSI127 from standard isolators?
The GSI127 is a comprehensive signal interface module designed specifically for industrial vibration, pressure, and proximity measurement chains. It offers not only high-level electrical isolation (4 kVRMS) but also signal conversion capabilities (μA -> mV or V -> V), frame voltage suppression, built-in diagnostics, and explosion-proof certification.
What is the difference between the A2 and A1 versions?
The A2 is an explosion-proof (Ex) model suitable for potentially explosive environments, while the A1 is a standard model suitable for conventional industrial environments.
What malfunctions occur if the equipment's operating temperature exceeds 70°C?
Significant increases in zero-point and sensitivity thermal drift, leading to measurement errors exceeding specifications; extreme heat triggers internal overload protection, causing signal interruption. Ventilation and heat-dissipating rails must be installed to lower the temperature inside the cabinet.
What is the warranty period?
Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.
GSI127 application diagram
Company & Contact Information

We are suppliers for industrial automation spare parts specializing in PLC modules, DCS card pieces, ESD system card pieces, vibration monitoring systems, steam turbine control systems, and gas generator spare parts.

Contact Person: Nelly Yang
Email: sales12@htechplc.com
Tel/Skype/Whatsapp: +86 18060985064
Email us now for competitive pricing and excellent service!
