DS200NATOG2A General Electric Mark V Speedtronic Voltage LCI Innovation Voltage Feedback Board

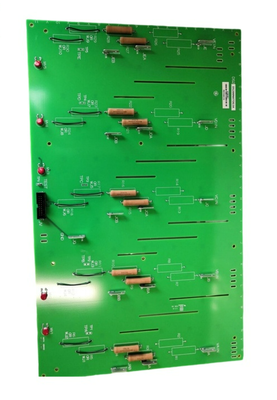

  • DS200NATOG2A General Electric Mark V Speedtronic Voltage LCI Innovation Voltage Feedback Board

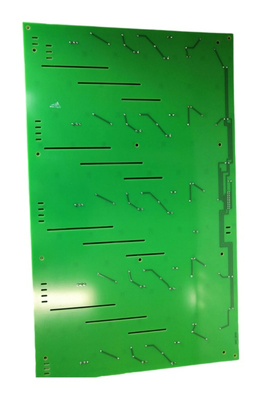

  • DS200NATOG2A General Electric Mark V Speedtronic Voltage LCI Innovation Voltage Feedback Board
Lugar de origen EE.UU
Nombre de la marca General Electric
Certificación Certificate of Origin
Número de modelo El número de unidades de carga
Cantidad de orden mínima 1 pieza
Precio $3500
Detalles de empaquetado Embalaje en caja original
Tiempo de entrega 5-7 DÍAS
Condiciones de pago T/T
Capacidad de la fuente 1-99 unidades/3-5 días
Datos del producto
Marca electricidad general Número de módulo El número de unidades de carga
Catalogar MARCA V Precio de venta - ¿Qué es eso?
Condición en stock Origen EE.UU
Plazo de entrega 3-5 días laborables Garantía 1 año
peso 1KG
Deja un mensaje
Descripción de producto
DS200NATOG2A General Electric Mark V Speedtronic Voltage LCI Innovation Voltage Feedback Board
Product Overview

The DS200NATOG2A NATO board is a Voltage Feedback Scaling Board designed for demanding industrial environments requiring high-precision voltage feedback control.

Key Features
  • Functional Acronym/Abbreviation: NATO
  • Part-Specific Manual: GEI-100225
  • Voltage Feedback Scaling Board
  • Number of Resistors: 4
  • Variant: G2
Technical Description

The core function of this item is to use a high-precision resistor network to attenuate high-voltage AC/DC signals from an SCR (thyristor rectifier) or IGBT bridge arm into low-voltage isolated feedback signals (typically 0-10 V DC) that the control system can process, thereby enabling the main control board to perform voltage closed-loop control and protection calculations.

The output signal from the circuit board is transmitted via five leads connected to a 20-pin ribbon connector. Additionally, several metal oxide varistors (MOVs) are included to prevent excessive output voltage in the event of a ribbon circuit break while input voltage is present. The load resistors required for operation are located on the included gate distribution board, not on the NATOG2A circuit board.

Application Fields
  • Power Generation: Control systems for gas turbines and steam turbines
  • Power Systems: Excitation and variable-frequency systems in power plants and substations
  • Industrial Drives: High-power variable-frequency drives and DC speed control systems (such as the DC2000/FC2000 series)
  • Process Industries: Process control in the petroleum, natural gas, chemical, paper, and mining industries
Product Specifications
Brand Name General Electric
Model DS200NATOG2A
Catalog Mark V
Gross Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16cm x 12cm
Country of Origin China
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $3500
Warranty 12 months
Processing Time 3-5 work days
Courier Partners DHL, UPS, TNT, FedEx and EMS
Compatible Systems
  • ABB: AC800M/DSQC/Bailey INFI 90
  • Bently Nevada: 3500/3300 system
  • GE: IC693/IC695/IC697/IC698/IC200/IC660/IC670/IS200/DS200 series
  • Honeywell: TDC 2000/TDC3000/TPS/Security systems
  • Schneider: Quantum 140 series
  • Siemens: MOORE/6ES5/6GK/6DD/6AR Series
  • Woodward: 505/505E/9905/2301D-ST series
  • Yokogawa: CS3000 system
  • Allen-Bradley: 1747/1746/1761/1763/1762/1766/1764/1769/1768/1756/1789/1794/1771/1785 series
