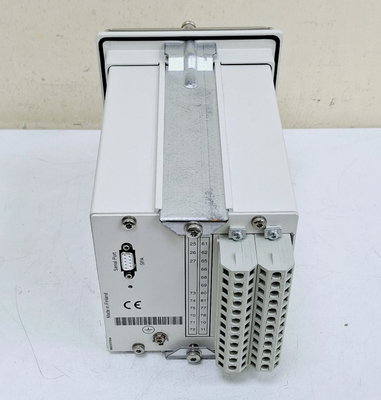

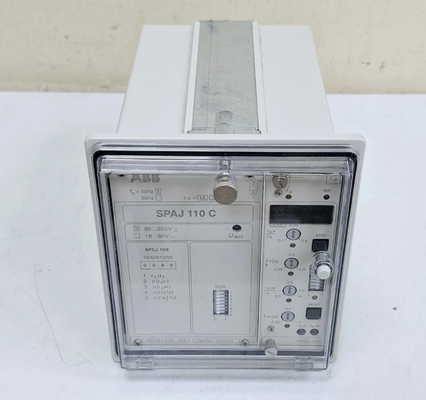

SPAJ110C-DA ABB Earth-fault Relay with Selective Protection for Solidly Earthed and Low Resistance Earthed Power Systems

  • SPAJ110C-DA ABB Earth-fault Relay with Selective Protection for Solidly Earthed and Low Resistance Earthed Power Systems
  • SPAJ110C-DA ABB Earth-fault Relay with Selective Protection for Solidly Earthed and Low Resistance Earthed Power Systems
  • SPAJ110C-DA ABB Earth-fault Relay with Selective Protection for Solidly Earthed and Low Resistance Earthed Power Systems
  • SPAJ110C-DA ABB Earth-fault Relay with Selective Protection for Solidly Earthed and Low Resistance Earthed Power Systems
Lugar de origen Alemania
Nombre de la marca ABB
Certificación Certificate of Origin
Número de modelo SPAJ110C-DA
Cantidad de orden mínima 1 pieza
Precio $500
Detalles de empaquetado Embalaje de caja original
Tiempo de entrega 5-7 días
Condiciones de pago T/T
Capacidad de la fuente 1-99 unidades/3-5 días

Póngase en contacto conmigo para muestras y cupones gratis.

¿Qué es?:0086 18588475571

El Wechat: 0086 18588475571

¿ Qué pasa?: sales10@aixton.com

Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.

x
Datos del producto
Marca TEJIDO Módulo numeber SPAJ110C-DA
Catalogar Relazador de fallas de tierra Precio de venta - ¿Qué es eso?
Condición En stock Origen Alemania
plazo de entrega 3-5 días laborables Garantía 1 año
Peso 1KG
Resaltar

Selective Protection Earth-fault Relay

,

Solidly Earthed Protection Relay

,

Low Resistance Earthed ABB Relay
Deja un mensaje
Descripción de producto
SPAJ110C-DA ABB Earth-fault Relay
Selective Protection for Solidly Earthed and Low Resistance Earthed Power Systems
Product Overview
The SPAJ110C-DA ABB Earth-fault Relay provides selective protection for solidly earthed and low resistance earthed power systems, offering reliable fault detection and system protection.
Key Features
  • Low-set neutral overcurrent stage with definite time or inverse time characteristic
  • High-set neutral overcurrent stage with definite time characteristic
  • Output relay functions to be freely configured
  • Flexible adaptation to different types of applications
  • Serial interface for connecting to fibre optic object bus and substation control systems
  • Digital display of setting values, neutral current measurements, and memorized fault values
  • Continuous self-supervision with auto-diagnostics of hardware and software
Technical Description
The SPAJ 110 C earth-fault relay is a secondary relay connected to the current transformers of the protected object. Earth-fault current measurement can be achieved via either a set of three phase current transformers in a residual current connection or a window-type core-balance current transformer.
When using a core-balance current transformer, ensure sufficient repeatability at high earth-fault currents. During an earth-fault event, the relay delivers alarm signals, trips circuit breakers, or initiates external auto-reclose relays based on application requirements and relay configuration.
SPAJ110C-DA ABB Earth-fault Relay with Selective Protection for Solidly Earthed and Low Resistance Earthed Power Systems 0
Product Specifications
Brand Name ABB
Model SPAJ110C-DA
Ordering Information SPAJ110C-DA
Catalog Earth-fault relay
Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16cm x 12cm
Country of Origin Malta
HS Code 8537101190
Availability In Stock
Shipping Port Xiamen
Warranty 12 months
Lead Time 3-5 work days
Shipping Partners DHL, UPS, TNT, FedEx and EMS
Compatible Product Range
ABB: AC800M/DSQC/Bailey INFI 90
Bently Nevada: 3500/3300 system
GE: IC693/IC695/IC697/IC698/IC200/IC660/IC670/IS200/DS200 series
Honeywell: TDC 2000/TDC3000/TPS/Security systems
Schneider: Quantum 140 series
Siemens: MOORE/6ES5/6GK/6DD/6AR Series
Woodward: 505/505E(9907-162,9907-164, 9907-165, 9907-167) 9905/2301D-ST series
Yokogawa: CS3000 system
Konrad: EC6423/ EC6424/ EC6426/ EC6430/ EC6432/ EC6433/ EC20382/MMS7000 series
Allen-Bradley: 1747/1746/1761/1763/1762/1766/1764/1769/1768/1756/1789/1794/1771/1785 series
