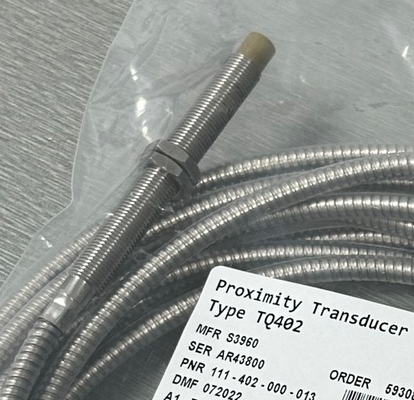

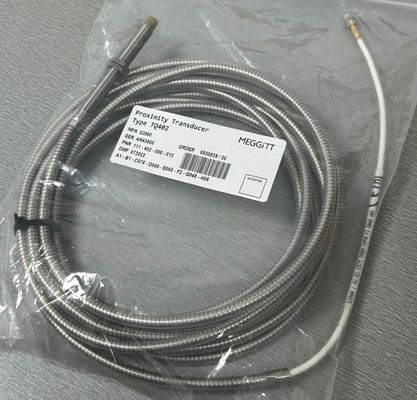

TQ402 111-402-000-013 A1-B1-C072-D000-E050-F2-G050-H05 Proximity Measuring System
| Lugar de origen | China. |
|---|---|
| Nombre de la marca | Other |
| Certificación | Certificate of Origin |
| Número de modelo | TQ402 111-402-000-013 A1-B1-C072-D000-E050-F2-G050-H05 |
| Cantidad de orden mínima | 1 por ciento |
| Precio | $1400 |
| Detalles de empaquetado | Embalaje original de la caja |
| Tiempo de entrega | 5 a 7 días |
| Condiciones de pago | T/T |
| Capacidad de la fuente | 1-99 piezas / 3-5 días |
Póngase en contacto conmigo para muestras y cupones gratis.
WhatsApp:0086 18588475571
El Wechat: 0086 18588475571
¿ Qué pasa?: sales10@aixton.com
Si tiene alguna preocupación, ofrecemos ayuda en línea las 24 horas.
xDatos del producto
| Marca del producto | otras | Número del módulo | TQ402 111-402-000-013 |
|---|---|---|---|
| Número el ordenar | El número de unidades de producción de los productos de la serie A será el número de unidades de pro | Precio de venta | - ¿Qué es eso? |
| Condición | En stock | Origen | China. |
| Tiempo de entrega | 3-5 días hábiles | La garantía | 1 año |
| Peso | 1 kg |
Descripción de producto
TQ402 111-402-000-013 A1-B1-C072-D000-E050-F2-G050-H05 Proximity Measuring System
Features:
Sensitivity
• Ordering option B21 : 8 mV/µm (200 mV/mil)
• Ordering option B22 : 2.5 µA/µm (62.5 µA/mil)
• Ordering option B23 : 4 mV/µm (100 mV/mil)
• Ordering option B24 : 1.25 µA/µm (31.2 µA/mil)
Linear measurement range (typical)
• Ordering option B21 : 0.15 to 2.15 mm, corresponding to a −1.6 to −17.6 V output
• Ordering option B22 : 0.15 to 2.15 mm, corresponding to a −15.5 to −20.5 mA output
• Ordering option B23 : 0.3 to 4.3 mm, corresponding to a −1.6 to −17.6 V output
• Ordering option B24 : 0.3 to 4.3 mm, corresponding to a −15.5 to −20.5 mA output
Frequency response : DC to 20 kHz (−3 dB)
Interchangeability of elements : All components in system are interchangeable
Description:
The TQ402 and TQ412 transducers can be matched with a single EA402 extension cable to effectively lengthen the front-end. Optional housings, junction boxes and interconnection protectors are available for the mechanical and environmental protection of the connection between the integral and extension cables.
The system is based around a TQ402 or TQ412 non-contact sensor and an IQS900 signal conditioner. Together, these form a calibrated proximity measurement system in which each component is interchangeable. The system outputs a voltage or a current proportional to the distance between the transducer tip and the target, such as a machine shaft.
| Product Details | |
| Brand Name | Other |
| Model | TQ402 111-402-000-013 |
| Ordering information | A1-B1-C072-D000-E050-F2-G050-H05 |
| Catalog | Vibration Monitoring |
| Gross Weight/Shipping Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 16cm x 16 cm x 12 cm |
| Country of Origin | China |
| HS Code | 8537101190 |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | $1400 |
| Warranty | 12 months |
| Lead time | 3-5 work days |
| Courier partners | DHL, UPS, TNT, FedEx and EMS |
Company Information:
We are the supplier for industrial automation spare parts.We specialize in PLC module, DCS card pieces, ESD system card pieces, vibration monitoring system card pieces, steam turbine control system module, gas generator spare parts. We have established the relationship with famouse PLC DCS product maintenance service providers in the world.
Our products are widely used in CNC machinery and metallurgy, oil and gas, petrochemical, chemical, paper printing, textile printing and dyeing, machinery, electronics manufacturing, automobile manufacturing, tobacco, plastic machinery, electricity, water conservancy, water treatment / environmental protection, municipal engineering, Heating, energy, transmission and distribution industries.
